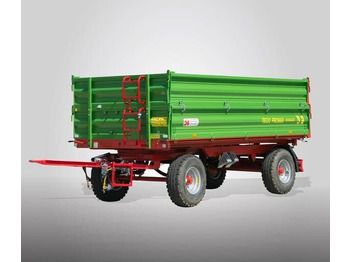

Новый Самосвальный прицеп PRONAR T653/2

Technical data of the standard version*

Permissible total weight 8120 [kg]

Payload 6000 [kg]

Unladen weight 2120 [kg]

Cargo volume 8.2 [m3]

Cargo area 8.2 [m2].

Length of the cargo box inside 4010 [mm].

Width of cargo box inside trapez: 2010/2060 [mm]

Overall dimensions (length/width/height) 6140/2230/2170 [mm].

Box wall height 500+500(optional) [mm].

Thickness of sheet metal of floor/wall 4/2 [mm]

Platform height from the ground 1120 [mm]

Wheel base 1600 [mm]

Suspension parabolic springs

Drawbar eye load - [kg].

Tyre size 11.5/80-15.3

Design speed 30 [km/h]

Tipping system three-way

Telescopic cylinder (stroke/oil requirement/pressure) 1300mm/8L/160bar

Minimum tractor power requirement 46.8/34.4 [hp/kW].

Tipping angle of the cargo box (rearward / sideways) 42/46 [˚].

• The data takes into account the completion of the trailer with walls of 500+500mm height.

Standard equipment

Cargo box with swinging universal wall opening system

Three-sided tipping system of the body with rear ball joints

Tipping direction selection by two pins with protection against incorrect operation

Trapezoidal shape of the loading body

Central locking at the floor of the side walls and rear wall

Walls and extensions: made of high quality, strong, laser-welded PF500mm profiles made of profiled sheet metal; with stable rear posts; with forged hinges and locks; without tie rope holders

Grain chute chute, with locking mechanism, in the rear wall

Ladder and side steps for easy access to the cargo box

Rectangular chassis frame, welded from open steel profiles

V-type drawbar with rigid hitch with Æ40mm eye

Steering system: ball swivel with swivel frame

Driving axles with drum brakes Æ300x60mm

Two-wire pneumatic brake system

Parking hand brake with crank handle

Lighting system 12V (bulb) with rear electric socket

Rear lighting lamps with grilles for protection against damage

Connection cable, spiral, of the lighting system

Rear hitch manual, rigid

Rear outlets for hydraulics, brakes, for second trailer

Tipping hydraulic system with automatic shut-off valve, limiting tipping

Telescopic cylinder for three-way tipping of the cargo box with articulated sling

Service support for the cargo box

Two wheel chocks housed in galvanized pockets

Plastic fenders - behind the rear wheel

Rear safety device (light bar) - approved

Paint system with high corrosion resistance with the use of two-component chemically hardened paint materials giving high durability of paint coatings and UV resistance

Undercarriage painting color RAL3000 red PRONAR

Painting colors for walls green RAL6010 PRONAR

Optional equipment (options)

V-type drawbar with a rigid hitch with an eye of 50mm

Extensions: made of high quality, strong, laser-welded PF500mm profiles, made of profiled sheets; with stable rear posts; with forged locks

Cable linking the walls/extensions (standard walls and extensions do not have the option of installing a cable)

Y-type drawbar with rigid hitch with 40mm eye

Installation of overrun brake

Parking hand brake with lever

Drawn curtain with frame

Roll-up tarpaulin with frame

Chute for chute shaft

Spare wheel hanger*

Wheels with 14.0/65-16 tires

Extensions 1000mm with mesh Ø8 - to be mounted

Extensions 1000mm with mesh Ø30 - to be mounted

Spare wheel (loose) 11.5/80-15.3

Spare wheel (loose) 14.0/65-16

Balcony on the front wall for tarp operation

Distinguishing triangle for slow-moving vehicles

Discharge auger for grain .

Rear chute across the full width of the trailer

A set of wall hangers to support the walls in a partially open position for transporting bales***.

Potato drop shock absorber in the form of suspended rubber belts - 2 sets of 1.8m long each mounted to the extensions ( need to equip the trailer with extensions)

• not present when balcony is installed

Mounted on the rear wall, two-segment, folding, with mechanical winch, with hydraulic auger drive, with an oil requirement of 30 L/min.

*** Use permitted only on internal access roads to agricultural land
